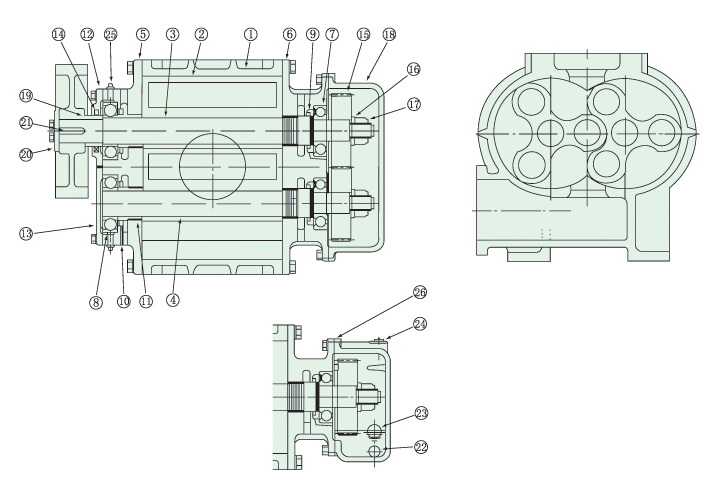

Blower Structure Diagram

No.

Name

Material

Q’ ty

No.

Name

Material

Q’ ty

1

Shell

HT200

1

14

Z sealing ring

Nitrile rubber

1

2

Impeller

HT200

2

15

Gear

35CrM

2

3

Drive shaft

45Cr

1

16

Gear lock washer

Q235

2

4

Driven shaft

45Cr

1

17

Gear lock nut

SS400

2

5

Drive side siding

HT200

1

18

Gearbox

HT200

1

6

Gear side siding

HT200

1

19

Sleeve

45

1

7

Drive bearing

NSK

2

20

End cover

Q235

2

8

Driven bearing

NSK

2

21

Pin

45

1

9

Sealing ring

Nitrile rubber

2

22

Plug

35

1

10

Sealing ring

Nitrile rubber

2

23

Oil gauge

1

11

Bearing sleeve

45

4

24

Vent

1

12

Bearing cover

HT200

1

25

Grease nipple

C3605

2

13

Bearing cover

HT200

1

26

Gearbox seals

Barley paper

2
