B30 Air Suspension Turbo Blower

Inquire Now Next ProductDownload
share

Product Description

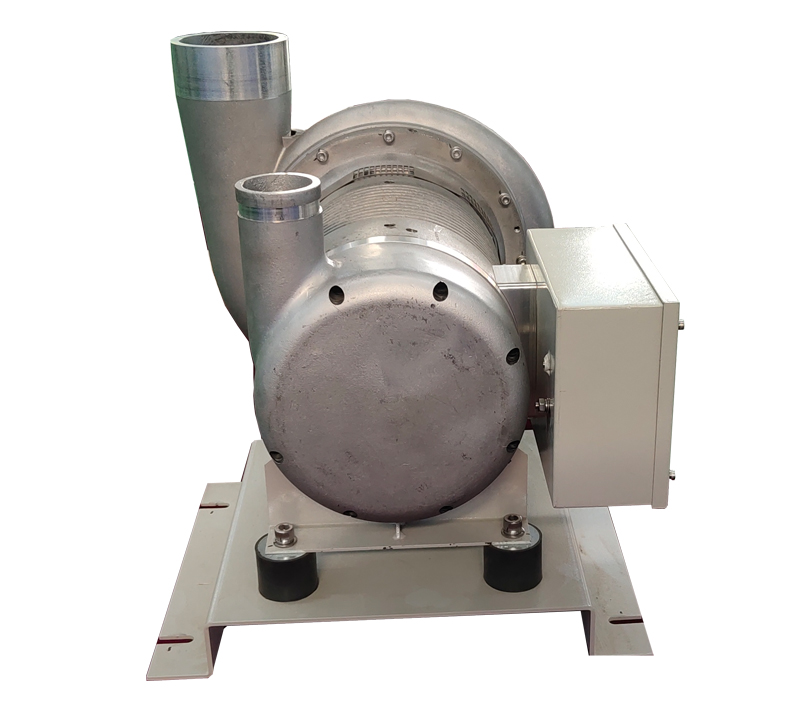

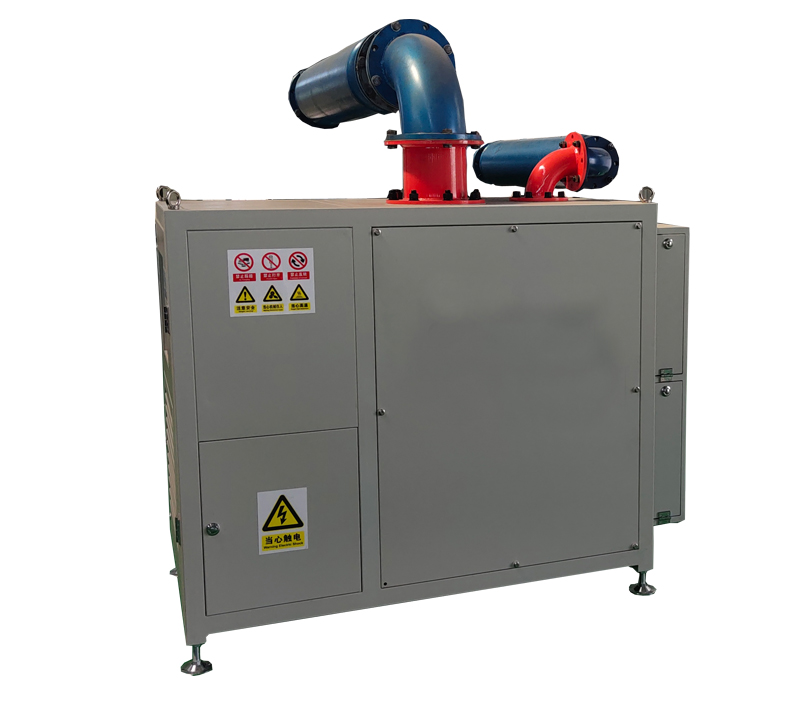

DICHENG B30 Air suspension turbo blower


Dicheng B30 series air suspension turbo blower is a processing base developed and established in cooperation with Beijing Zhituobo Technology Co., Ltd. The core components (permanent magnet synchronous motor) and ultra-high speed controller are independently developed, which greatly reduces the cost. The air capacity is 17 m3/min to 33 m3/min and the pressure is 40 kPa to 80 kPa. The advantages of air suspension turbo blower are long service life, small volume, easy maintenance, high efficiency and energy saving, intelligent control, oil-free and low noise.

B15 Air Suspension Turbo Blower

B15 Air Suspension Turbo Blower

B15 Air Suspension Turbo Blower

B15 Air Suspension Turbo Blower

B15 Air Suspension Turbo Blower

B15 Air Suspension Turbo Blower

Energy saving comparison of Air suspension turbo blower - Guangling Jinyu Cement Co., Ltd



In recent years, in order to reduce production costs, Jinyu group has taken the transformation of blower as a key work. Since 2018, the group has taken Guangling Jinyu Cement Co., Ltd. as the pilot of transformation, and successively purchased 5 air suspension turbo blowers from our company to replace the kiln head primary air blower, kiln tail coal feeding blower, homogenization silo blower and sewage plant aeration blower in the cement plant. The pilot has become a model of air suspension turbine blower in the energy-saving transformation of blower in cement industry.

Compared with the actual measured data, the modified air suspension turbo blower saves 34.48% energy than the original roots blower.

Taking the primary air blower at the kiln head as an example, the measured energy-saving data are compared:


Comparison items

Comparison itemsRoots blowerAir suspension turbo blower
Number of operating units (set)2(1 use and 1 standby)1
Actual power(KW)58
38
Annual electricity charge(CNY)406464266304
Annual electricity saving(CNY)140160

Energy saving rate(%)

34.48

    The electricity charge is RMB 0.008 per kWh.

B15 Air Suspension Turbo Blower

Energy saving comparison of Air suspension turbo blower - Jiaozuo Huakang Sugar Alcohol Technology Co., Ltd


Jiaozuo Huakang Sugar Alcohol Technology Co., Ltd. purchased a B100-6 air suspension turbo blower from our company in May 2018 in order to achieve many transformation purposes such as energy conservation and emission reduction, noise reduction and production cost reduction.

Compared with the measured data, the energy-saving rate of the modified air suspension turbo blower is 50.13% higher than that of the original roots blower.

The measured energy-saving data are compared:

Comparison items

Roots blower

Air suspension turbo blower

Number of operating units (set)

3(2 use and 1 standby)

1

Actual power(KW)

149
74.3

Annual electricity charge(CNY)

913668

455607

Annual electricity saving(CNY)

458061

Energy saving rate(%)

50.13%

The electricity charge is RMB 0.007 per kWh.

B15 Air Suspension Turbo Blower
