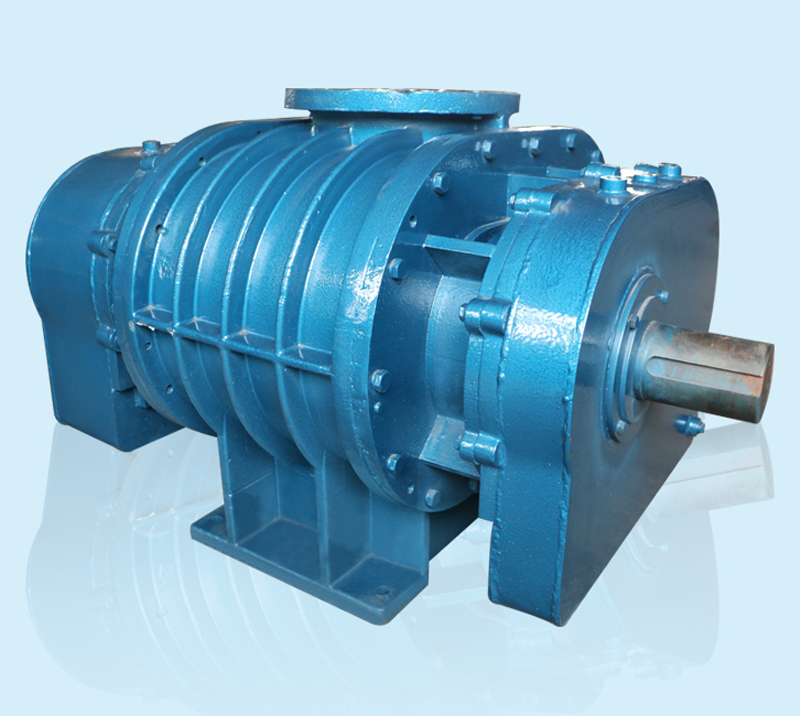

DRRF250 Roots Blower

Inquire Now Next Product Download

Product Description

Product introduce

DRRF250 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 61.6m³/min- 120.4m³/min, the pressure is from 9.8Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

L95WD Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	61.6 to 120.4m3/min
Discharge Pressure	9.8 to 98Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	4250-5340kg
Discharge Diameter	250mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
More...

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF250 Roots blower
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
650	9.8	76.2	19	Y200L2-6	22
	19.6	73.5	34	Y280S-6	45
	29.4	71.3	48	Y280M-6	55
	39.2	69.4	63	Y315S-6	75
	49.0	67.6	78	Y315M-6	90
	58.8	66.0	92	Y315L1-6	110
	68.6	64.4	107	Y315L2-6	132
	78.4	63.0	121	Y355M1-6	160
	88.2	61.6	136	Y355M1-6	160
730	9.8	86.9	21	Y250M-8	30
	19.6	84.2	38	Y280M-8	45
	29.4	82.0	54	Y315M-8	75
	39.2	80.1	70	Y315L1-8	90
	49.0	78.3	87	Y315L2-8	110
	58.8	76.7	103	Y355M1-8	132
	68.6	75.1	120	Y355M1-8	132
	78.4	73.7	136	Y355M2-8	160
	88.2	72.3	153	Y355L1-8	185
	98.0	71.6	161	Y355L1-8	185
800	9.8	96.3	23	Y225M-6	30
	19.6	93.6	41	Y280M-6	55
	29.4	91.4	59	Y315S-6	75
	39.2	89.5	77	Y315M-6	90
	49.0	87.7	95	Y315L1-6	110
	58.8	86.1	113	Y315L2-6	132
	68.6	84.5	131	Y355M1-6	160
	78.4	83.1	149	Y355M2-6	185
	88.2	81.7	167	Y355M2-6	185
	98.0	80.4	185	Y355L1-6	220
880	9.8	107.2	26	Y225M-6	30
	19.6	104.5	45	Y280M-6	55
	29.4	102.1	65	Y315S-6	75
	39.2	100.2	85	Y315L1-6	110
	49.0	98.4	105	Y315L2-6	132
	58.8	96.8	125	Y355M1-6	160
	68.6	95.2	144	Y355M1-6	160
	78.4	93.8	164	Y355M2-6	185
	88.2	92.4	184	Y355M3-6	220
	98.0	91.1	204	Y355M4-6	250
980	9.8	120.4	29	Y250M-6	37
	19.6	117.7	51	Y315S-6	75
	29.4	115.5	72	Y315M-6	90
	39.2	113.6	95	Y315L1-6	110
	49.0	111.8	117	Y315L2-6	132
	58.8	110.2	139	Y355M1-6	160
	68.6	108.6	161	Y355M2-6	185
	78.4	107.2	183	Y355M3-6	200
	88.2	105.8	205	Y355L2-6	250
	98.0	104.5	227	Y355L2-6	250
