DSR225 Roots Blower

Inquire Now Next ProductDownload
share

Product Description

DSR225 rotory blower for cement factory

Product introduce

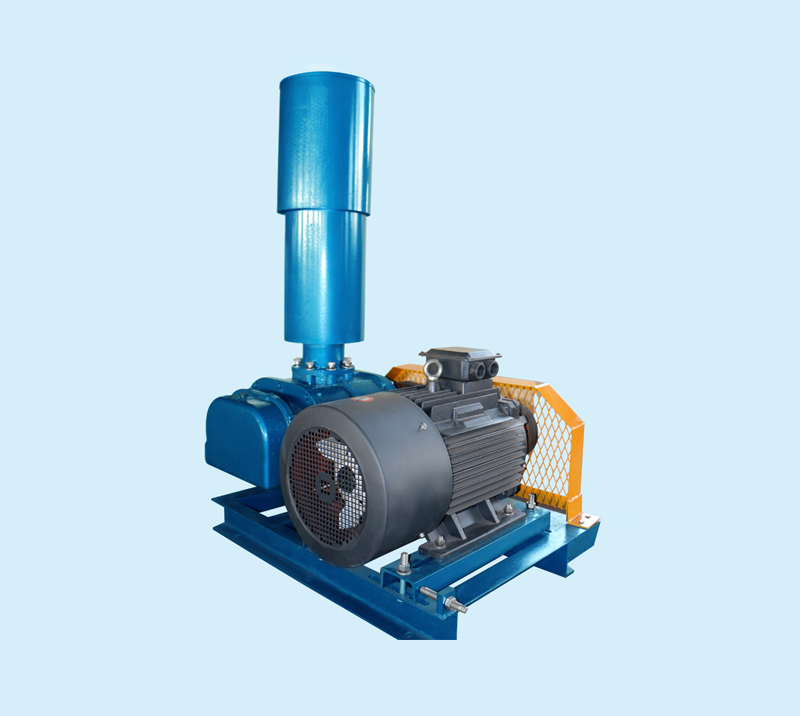

DSR225 Roots Blowers adopt the advanced technology of Japan, its air capacity is 33.19m³/min-71.08m³/min, the pressure is from 9.8Kpa to 58.8Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

DSR350 Roots Blower

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life



Specification


Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity33.19 to 71.08 m³/min
Discharge Pressure9.8 to 58.8Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight1230kg
Discharge Diameter225mm(or customized)


Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

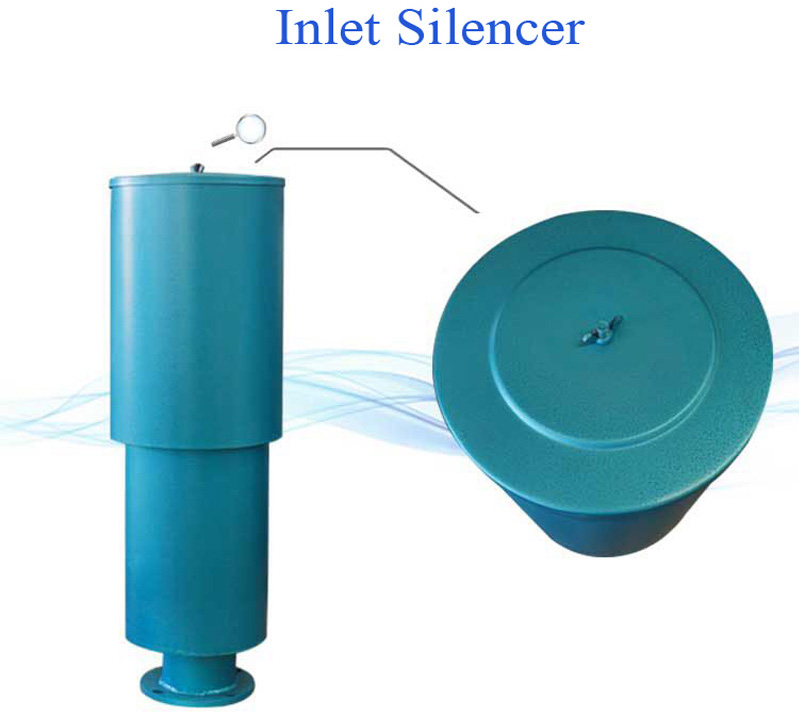

Inlet filter silencer

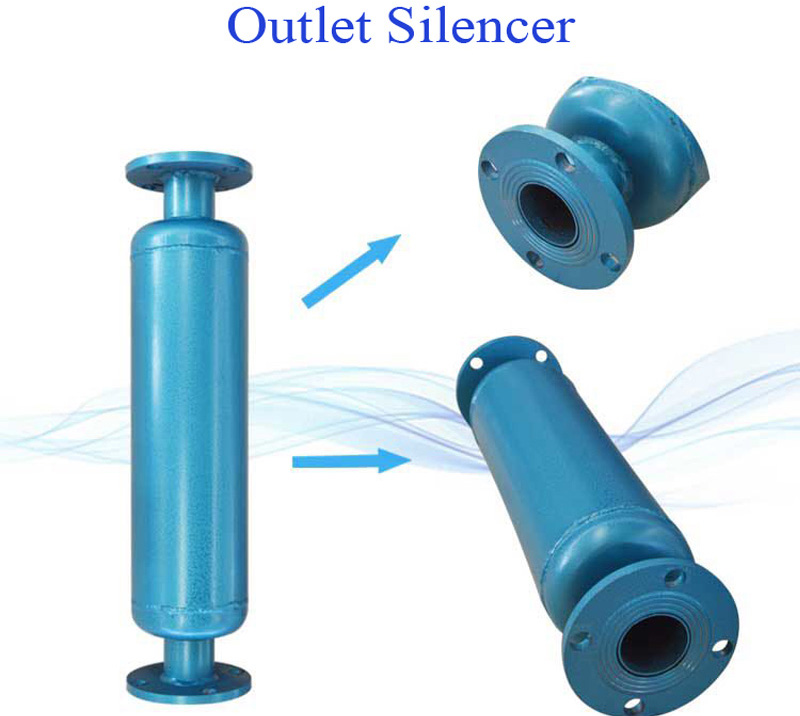

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

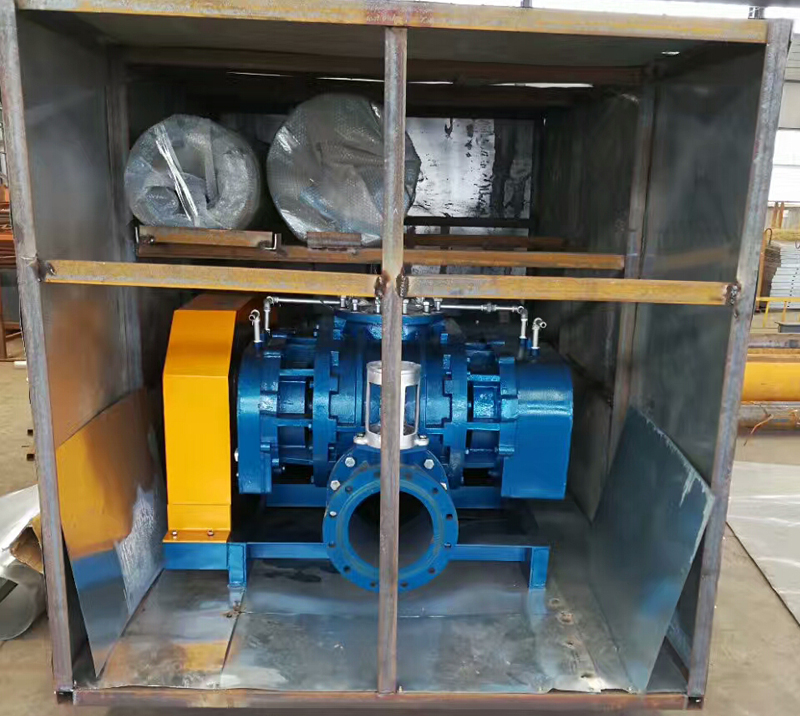

Package

Fumigation free plywood case

Iron case


Certificate


CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower


Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.


DSR225 Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
8109.838.169.96Y160M-411
14.737.4713.57Y160L-415
19.636.6617.61Y180L-422
24.536.0321.14Y200L-430
29.435.5324.85
34.335.1228.62
39.234.7132.35Y225S-437
44.134.3436.06Y225M-445
4933.9139.85
53.933.5443.29Y250M-455
58.833.1946.89
9009.842.8511.97Y160L-415
14.742.1016.22Y180M-418.5
19.641.4120.55Y180L-422
24.540.8824.69Y200L-430
29.440.4228.83
34.340.1033.10Y225S-437
39.239.7337.14Y225M-445
44.139.3341.34
4938.8445.42Y250M-455
53.938.4949.28
58.838.0653.29Y280S-475
9809.847.0213.93Y160L-415
14.746.2618.64Y180L-422
19.645.7323.30Y200L-430
24.545.2227.56
29.444.8232.65Y225S-437
34.344.5836.99Y225M-445
39.244.1841.49
44.143.7445.91Y250M-455
4943.2650.42
53.942.8254.63Y280S-475
58.842.4359.30
10709.851.6716.42Y180M-418.5
14.751.0321.38Y200L-430
19.650.4925.52
24.550.0231.02Y225S-437
29.449.7536.19Y225M-445
34.349.4541.40
39.249.2346.42Y250M-455
44.148.7051.21Y280S-475
4948.2156.22
53.947.7760.86
58.847.3565.97
11509.855.8618.25Y180L-422
14.755.2923.96Y200L-430
19.654.6928.48
24.554.3833.79Y225S-437
29.454.1439.30Y225M-445
34.353.8644.74Y250M-455
39.253.5950.44
44.153.1056.00Y280S-475
4952.5461.23
53.952.1566.14
58.851.7071.71Y280M-490
12309.859.5620.54Y180L-422
14.759.0226.36Y200L-430
19.658.5031.74Y225S-437
24.558.1737.56Y225M-445
29.457.9043.54Y250M-455
34.357.6849.56
39.257.3655.32Y280S-475
44.157.0260.98
4956.5266.67
53.956.1371.82Y280M-490
58.855.7577.79
13109.863.2423.61Y200L-430
14.762.7229.25Y225S-437
19.662.2635.11
24.561.9041.16Y225M-445
29.461.6847.62Y250M-455
34.361.4653.95Y280S-475
39.261.2460.25
44.160.8666.19
4960.5071.97Y280M-490
53.960.1577.46
58.859.8283.70
13909.866.9625.60Y200L-430
14.765.2332.00Y225S-437
19.665.9538.29Y225M-445
24.565.6845.00Y250M-455
29.465.4151.54Y280S-475
34.365.3058.26
39.265.0665.07
44.164.7771.18Y280M-490
4964.4277.40
53.964.2283.02
58.863.9289.54Y315S-4110
14809.871.0828.58Y200L-430
14.770.6234.78Y225S-437
19.670.1741.29Y225M-445
24.569.9248.54Y250M-455
29.469.6755.90Y280S-475
34.369.5062.86
39.269.3769.86
44.169.1476.36Y280M-490
4968.8682.83
53.968.7089.10Y315S-4110
58.868.5396.25
