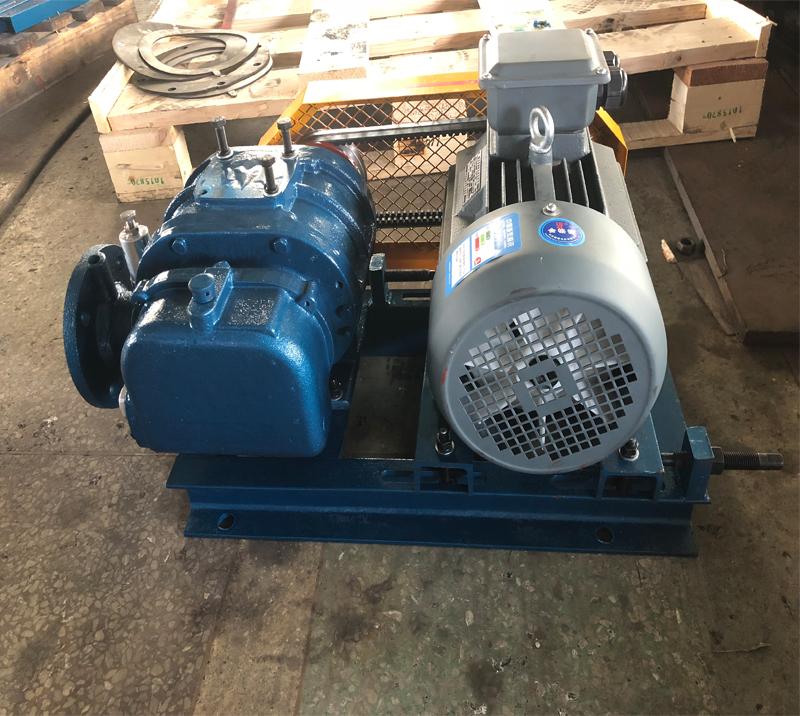

DRRF240 Air and Vacuum Single Stage Side Channel Blower

Inquire Now Next ProductDownload
share

Product Description

Product introduce

DRRF240 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 38.9m3/min- 78.0m3/min, the pressure is from 9.8Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.



Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life


Specification

Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity

38.9 to 78.0 m3/min

Discharge Pressure9.8 to 98Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight3890-4450kg
Discharge Diameter250mm(or customized)


Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.



Package

Fumigation free plywood case

Iron case


Certificate


DRRF240 Air and Vacuum Single Stage Side Channel Blower


Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF240  Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
6509.849.613Y180L-615
19.647.422Y225M-630
29.445.832Y250M-637
39.244.441Y280M-655
49.043.151Y315S-675
58.841.960Y315S-675
68.640.970Y315M-690
78.439.979Y315M-690
88.238.989Y315L1-6110
7309.856.514Y225S-818.5
19.654.325Y250M-830
29.452.736Y280M-845
39.251.346Y315S-855
49.050.057Y315M-875
58.848.868Y315M-875
68.647.878Y315L1-890
78.446.889Y315L2-8110
88.245.8100Y315L2-8110
98.045.0110Y355M1-8132
8009.862.516Y200L1-618.5
19.660.327Y225M-630
29.458.739Y280S-645
39.257.351Y315S-675
49.056.062Y315S-675
58.854.874Y315M-690
68.653.886Y315L1-6110
78.452.898Y315L1-6110
88.251.8109Y315L2-6132
98.051.0121Y355M1-6160
8809.869.417Y200L1-622
19.667.230Y250M2-637
29.465.643Y280M-655
39.264.256Y315S-675
49.062.969Y315M-690
58.861.782Y315L1-6110
68.660.794Y315L1-6110
78.459.7107Y315L2-6132
88.258.7120Y315L2-6132
98.057.9133Y355M1-6160
9809.878.019Y200L2-622
19.675.833Y250M-637
29.474.248Y280M-655
39.272.862Y315S-675
49.071.576Y315M-690
58.870.391Y315L1-6110
68.669.3105Y315L2-6132
78.468.3120Y315L2-6132
88.267.3134Y355M1-6160
98.066.5148Y355M2-6185
