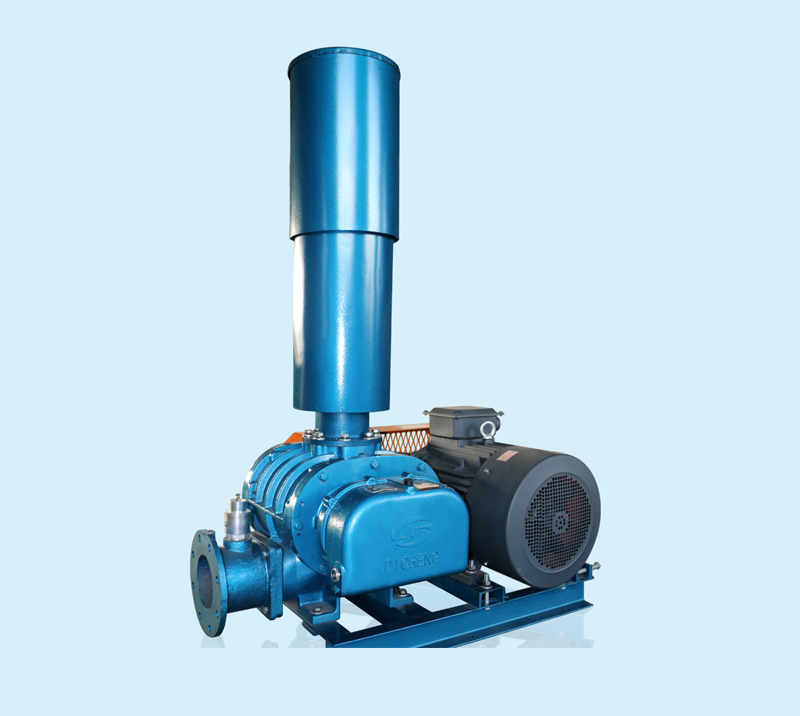

DRRF250 Wholesale customized good quality oxygenation roots blower

Inquire Now Next ProductDownload
share

Product Description

Product introduce

DRRF250 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 61.6m3/min- 120.4m3/min, the pressure is from 9.8Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.



Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life


Specification

Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity

61.6 to 120.4m3/min

Discharge Pressure9.8 to 98Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight4250-5340kg
Discharge Diameter250mm(or customized)


Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.



Package

Fumigation free plywood case

Iron case


Certificate



DRRF250 Wholesale customized good quality oxygenation roots blower



Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF250 Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
6509.876.219Y200L2-622
19.673.534Y280S-645
29.471.348Y280M-655
39.269.463Y315S-675
49.067.678Y315M-690
58.866.092Y315L1-6110
68.664.4107Y315L2-6132
78.463.0121Y355M1-6160
88.261.6136Y355M1-6160
7309.886.921Y250M-830
19.684.238Y280M-845
29.482.054Y315M-875
39.280.170Y315L1-890
49.078.387Y315L2-8110
58.876.7103Y355M1-8132
68.675.1120Y355M1-8132
78.473.7136Y355M2-8160
88.272.3153Y355L1-8185
98.071.6161Y355L1-8185
8009.896.323Y225M-630
19.693.641Y280M-655
29.491.459Y315S-675
39.289.577Y315M-690
49.087.795Y315L1-6110
58.886.1113Y315L2-6132
68.684.5131Y355M1-6160
78.483.1149Y355M2-6185
88.281.7167Y355M2-6185
98.080.4185Y355L1-6220
8809.8107.226Y225M-630
19.6104.545Y280M-655
29.4102.165Y315S-675
39.2100.285Y315L1-6110
49.098.4105Y315L2-6132
58.896.8125Y355M1-6160
68.695.2144Y355M1-6160
78.493.8164Y355M2-6185
88.292.4184Y355M3-6220
98.091.1204Y355M4-6250
9809.8120.429Y250M-637
19.6117.751Y315S-675
29.4115.572Y315M-690
39.2113.695Y315L1-6110
49.0111.8117Y315L2-6132
58.8110.2139Y355M1-6160
68.6108.6161Y355M2-6185
78.4107.2 183Y355M3-6200
88.2105.8205Y355L2-6250
98.0104.5227Y355L2-6250
