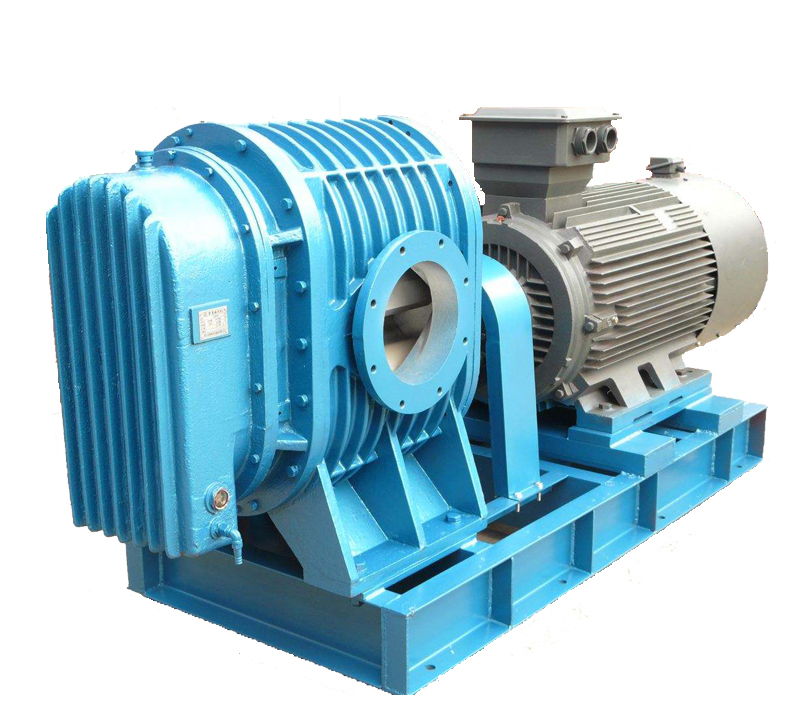

DSR125V Three-phase motor vacuum roots blower

DSR125V Three-phase motor vacuum roots blower

Product Description

Product introduce

DSR125V Roots Vacuum Blowers adopt the advanced technology of Japan, its air capacity is 5.14m³/min - 12.50m³/min, the vacuum is from -13.3Kpa to 40Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.

Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life

Specification

Type of technology	Positive displacement blowers
Design	Negative pressure
Air capacity	5.14 to 12.5 m³/min
Negative Pressure	-13.3Kpa to 40Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	235kg
Discharge Diameter	125mm(or customized)

Application

Industry	Application
Bulk material handling	Pneumatic conveying
Dairy	Automated milking
Vacuum excavation	Potholing & slurry recovery
Chemical Industry	Vacuum processing & conveying
Pulp & paper	Chip conveying & process vacuum
Power generation	Fly ash conveying & aeration
Milling & baking	Blending & conveying
Blower application	Material vacuuming
Cement & lime	Fluidization & conveying
Waste water	Aeration & backwashing
More...

Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.

Package

Fumigation free plywood case

Iron case

Certificate

Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DSR125V Roots vacuum blower
Rotate Speed(r/min)	Vacuum Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Motor
Rotate Speed(r/min)	Vacuum Pressure(kpa)	Air Capacity(m3/min)	ShaftPower(KW)	Model	Power(KW)
980	-13.3	6.24	2.27	Y132S-4	5.5
	-20.0	5.97	3.17
	-26.7	5.70	4.07
	-33.3	5.42	4.97
	-40.0	5.14	5.86	Y132M-4	7.5
1050	-13.3	6.75	2.60	Y132S-4	5.5
	-20.0	6.48	3.53
	-26.7	6.21	4.47
	-33.3	5.94	5.41	Y132M-4	7.5
	-40.0	5.66	6.35	Y132M-4	7.5
1200	-13.3	7.77	3.26	Y132S-4	5.5
	-20.0	7.51	4.31	Y132S-4	5.5
	-26.7	7.25	5.37	Y132M-4	7.5
	-33.3	6.98	6.42	Y132M-4	7.5
	-40.0	6.69	7.47	Y160M-4	11
1310	-13.3	8.57	3.71	Y132S-4	5.5
	-20.0	8.36	4.87	Y132S-4	5.5
	-26.7	8.13	6.02	Y132M-4	7.5
	-33.3	7.88	7.18	Y160M-4	11
	-40.0	7.61	8.33	Y160M-4	11
1410	-13.3	9.27	4.05	Y132S-4	5.5
	-20.0	9.05	5.29	Y132M-4	7.5
	-26.7	8.82	6.53	Y132M-4	7.5
	-33.3	8.57	7.77	Y160M-4	11
	-40.0	8.30	9.00	Y160M-4	11
1470	-13.3	9.70	4.37	Y132S-4	5.5
	-20.0	9.48	5.66	Y132M-4	7.5
	-26.7	9.25	6.95	Y132M-4	7.5
	-33.3	9.02	8.23	Y160M-4	11
	-40.0	8.78	9.21	Y160M-4	11
1550	-13.3	10.30	4.62	Y132S-4	5.5
	-20.0	10.10	5.98	Y132M-4	7.5
	-26.7	9.82	7.34	Y160M-4	11
	-33.3	9.58	8.70
	-40.0	9.33	10.10
1650	-13.3	11.00	5.18	Y132S-4	5.5
	-20.0	10.70	6.64	Y132M-4	7.5
	-26.7	10.50	8.11	Y160M-4	11
	-33.3	10.30	9.58	Y160M-4	11
	-40.0	10.10	11.10	Y160L-4	15
1770	-13.3	11.80	5.70	Y132M-4	7.5
	-20.0	11.50	7.23	Y160M-4	11
	-26.7	11.30	8.75
	-33.3	11.10	10.30
	-40.0	10.90	11.80	Y160L-4	15
1880	-13.3	12.50	6.25	Y132M-4	7.5
	-20.0	12.30	7.86	Y160M-4	11
	-26.7	12.00	9.46	Y160M-4	11
	-33.3	11.80	11.10	Y160L-4	15
	-40.0	11.60	12.70	Y160L-4	15
