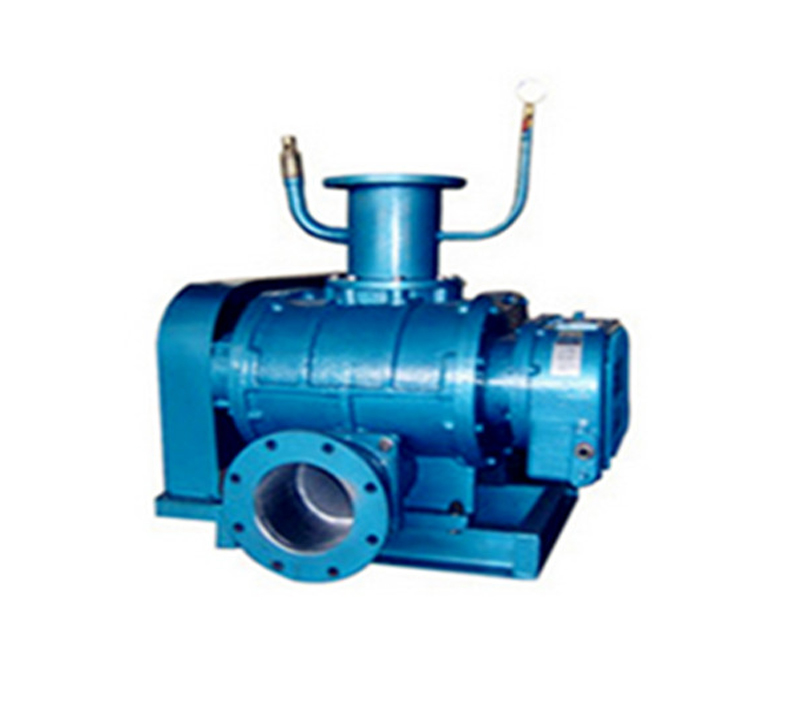

DSR300G New antique positive displacement air blower

Inquire Now Next ProductDownload
share

Product Description

Product introduce

DSR300G Roots Blowers are tri-lobe double oil tanks roots blowers, adopt the advanced technology of Japan, its air capacity is 83.8m³/min - 134.1m³/min, the pressure is from 63.7Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.



Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life



Specification

Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity83.8 to 134.1m³/min
Discharge Pressure63.7 to 98Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight2300kg
Discharge Diameter300mm(or customized)


Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.



Package

Fumigation free plywood case

Iron case


Certificate


DSR300G New antique positive displacement air blower



Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.


DSR-300G Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
990 63.786.90114.7Y315M-4132
68.686.70123.6
73.586.40127.1Y315L1-4160
78.486.10135.1
83.385.50150.1
88.285.00165.0Y315L2-4200
93.184.60172.3
98.083.80183.0
117063.7102.5135.3Y315L1-4160
68.6102.5145.3
73.5102.1150.1
78.4101.8159.8Y315L2-4200
83.101.5170.5
88.2101.1182.1
93.1100.8200.1Y355M1-4220
98.0100.5227.0Y355M-4250
125063.7110.4145.7Y315L1-4160
68.6110.2155.8Y315L2-4200
73.5110.0161.7
78.4109.8172.4
83.3109.3187.1
88.2108.9203.1Y355M1-4220
93.1108.6220.1Y355M-4250
98.0108.3234.0
136063.7123.2162.6Y315L2-4200
68.6123.0176.6
73.5122.7180.4
78.4122.5192.3
83.3122.2206.1Y355M1-4220
88.2122.0217.5Y355M-4250
93.1121.7232.0
98.0121.5256.0Y355L1-4280
148063.7134.1177.8Y315L2-4200
68.6134.0190.6
73.5133.8196.7Y355M1-4220
78.4133.7209.9
83.3133.5213.0
88.2133.2235.1Y355M-4250
93.1132.8250.1Y355L1-4280
98.0132.5270.1
