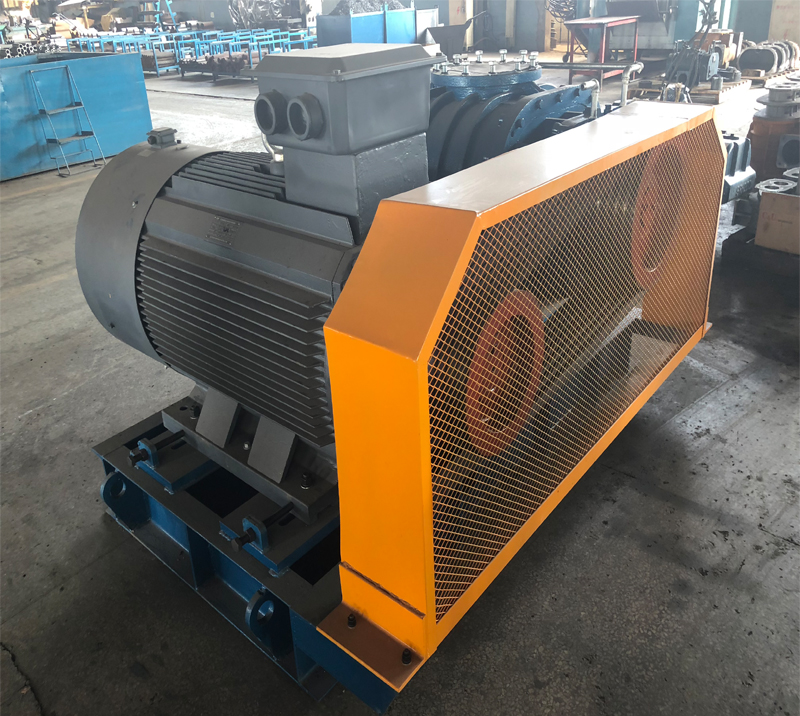

DSR80G High Pressure Channel Blower for Textile Machines

Inquire Now Next ProductDownload
share

Product Description

Product introduce

DSR80G Roots Blowers are tri-lobe double oil tanks roots blowers, adopt the advanced technology of Japan, its air capacity is 1.82m³/min-5.26m³/min, the pressure is from 63.7Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.



Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life



Specification

Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity1.82 to 5.26m³/min
Discharge Pressure63.7 to 98Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight153kg
Discharge Diameter80mm(or customized)

Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.


Package

Fumigation free plywood case

Iron case


Certificate


DSR80G High Pressure Channel Blower for Textile Machines



Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DSR-80G Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
114063.72.274.09Y132S-45.5
68.62.204.44
73.52.144.83
78.42.075.25Y132M-47.5
83.32.015.61
88.21.965.97
93.11.896.33
98.01.826.69Y160M-411
123063.72.524.49Y132S-45.5
68.62.454.88
73.52.375.30Y132M-47.5
78.42.305.76
83.2.256.10
88.22.196.45
93.12.126.81Y160M-411
98.02.067.17
1300 63.72.774.82Y132S-45.5
68.62.695.23Y132M-47.5
73.52.615.69
78.42.536.18
83.32.486.40
88.22.406.71Y160M-411
93.12.347.07
98.02.287.43
136063.72.955.08Y132M-47.5
68.62.865.52
73.52.775.99
78.42.696.52
83.32.626.80Y160M-411
88.22.577.21
93.12.497.53
98.02.427.89
144063.73.075.67Y132M-47.5
68.63.006.06
73.52.926.44
78.42.846.89
83.32.787.03Y160M-411
88.22.657.38
93.12.607.90
98.02.558.10
156063.73.446.17Y132M-47.5
68.63.376.57
73.53.306.97
78.43.217.21Y160M-411
83.33.187.40
88.23.157.70
93.13.108.12
98.03.078.35
165063.73.736.55Y132M-47.5
68.63.657.02
73.53.597.45Y160M-411
78.43.487.73
83.33.408.00
88.23.328.20
93.13.278.40
98.03.218.70
173063.74.016.94Y132M-47.5
68.63.937.35Y160M-411
73.53.857.84
78.43.798.25
83.33.708.40
88.23.658.71
93.13.618.98
98.03.529.10
182063.74.297.27Y160M-411
68.64.227.74
73.54.158.25
78.44.088.72
83.34.009.01
88.23.959.15
93.13.899.28
98.03.809.55Y160L-415
190063.74.557.65Y160M-411
68.64.498.14
73.54.428.63
78.44.359.13
83.34.279.31
88.24.209.58
93.14.139.88
98.04.0710..1Y160L-415
