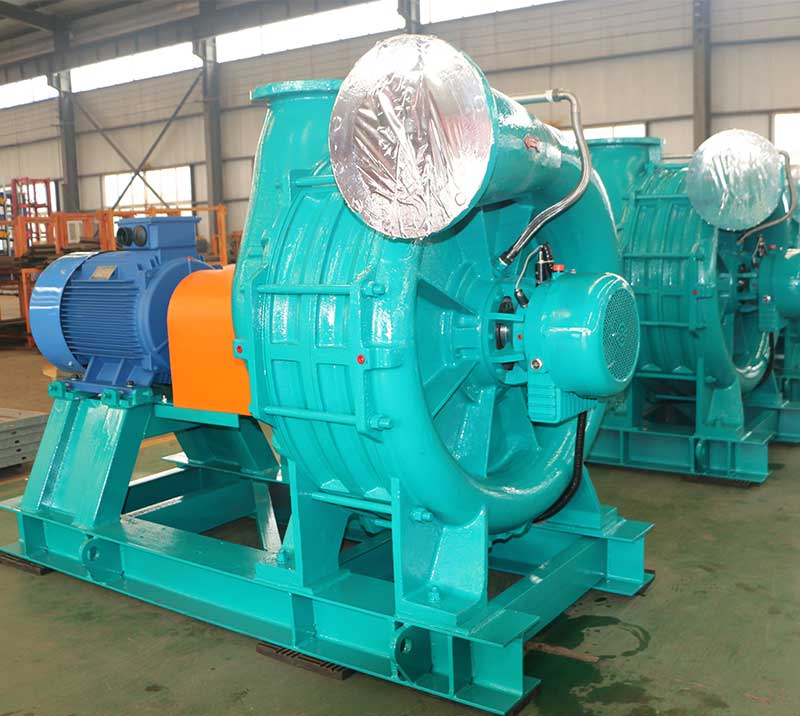

C100 Multistage Centrifugal Blowers

Inquire Now Next ProductDownload
share

Product Description

Products Introduce

DACHENG MACHINERY offers a full range of multistage centrifugal blowers with 20 models to choose from. We have the right blower for your application today and our Research and Development department is developing new models to meet your needs tomorrow.

Product performance ranges up to 98Kpa pressure or to -40Kpa vacuum and flows from 35 to 220 m³/min. Dacheng manufactures blower and process control systems as well as provides complete blower packages with accessories to meet a wide variety of applications.



Advantage

1. Energy-efficient.

2. Clean Oil Free High Pressure Air

3. No Pulsation of Flow

4. Non-bolt installation.

5. Reliable and Simple to Maintain

6. Customized high-speed efficient broadband motor.

7. Monitoring device.

8. Air cooling.

9. Very Low Sound Levels

10. Long service life.



Model and Technical Details

Using environmentTransport mediaAir, Neutral gases
Inlet temperature(℃)0 ~ 40℃
Inlet Pressure(kPa A)101.32Kpa.A
BlowerModelC100
Air capacity(m3/min)0 ~ 100
Round speed(r/min)0 ~ 3550
Transmission formDirectly connected by Couplings
Pressure(kPa)

98Kpa pressure

-40Kpa vacuum

Lubrication methodOil splash lubrication
Cooling methodAir cooled
Sealed formLabyrinth seal + carbon ring seal + suction seal
Axial balance deviceWith axial balance plate
Safety deviceBearing temperature and vibration sensor
Noise at 1 meter from the blower ≤80dB
MotorModelEnergy efficient broadband motor
Power(kW)55 ~ 200
power supply380V, 30~70hz 3 phases or Customize
Degree of protectionIP55
Round speed(r/min)3550
EfficiencyIE3
Explosion protection ratingCustomize
Insulation classF
MaterialBlower caseHT250
ImpellerZL105 Aluminum alloy
WallboardHT250
Oil tankZL104A Aluminum alloy
BearingSKF Bearing
CouplingJM200+ Flexible diaphragm couplings
Spindle45# Conditioning
InstallationFixed wayPlaced directly without need for anchor bolts


Application

1) Pneumatic Conveying Applications

2) Water Treatment Blowers & Waste Water Process Control System

3) Petroleum & Chemical Industry

4) Central Vacuum Systems

5) General Industrial

6) Environmental

* More



Package

Fumigation free plywood case

Iron case

Bubble film



Certificate

CE certificate, ISO9001 certificate and SGS certificate.

DSR350 Roots Blower

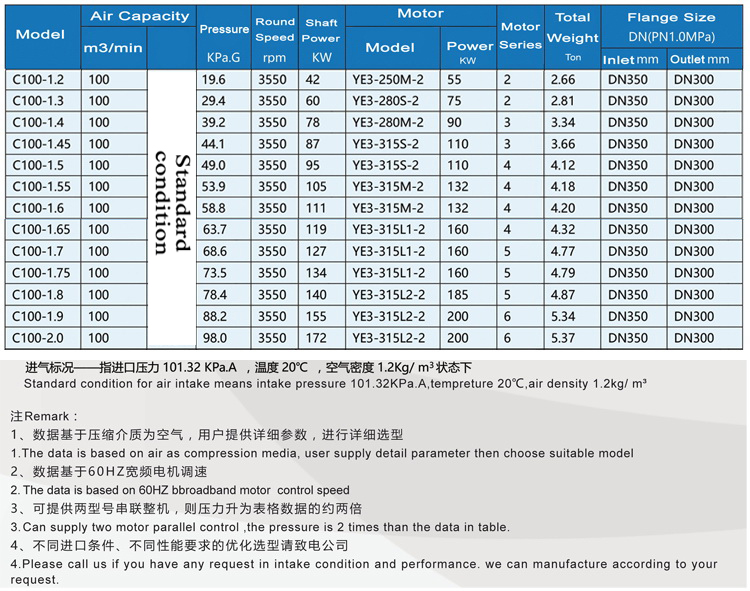

Performance parameters
