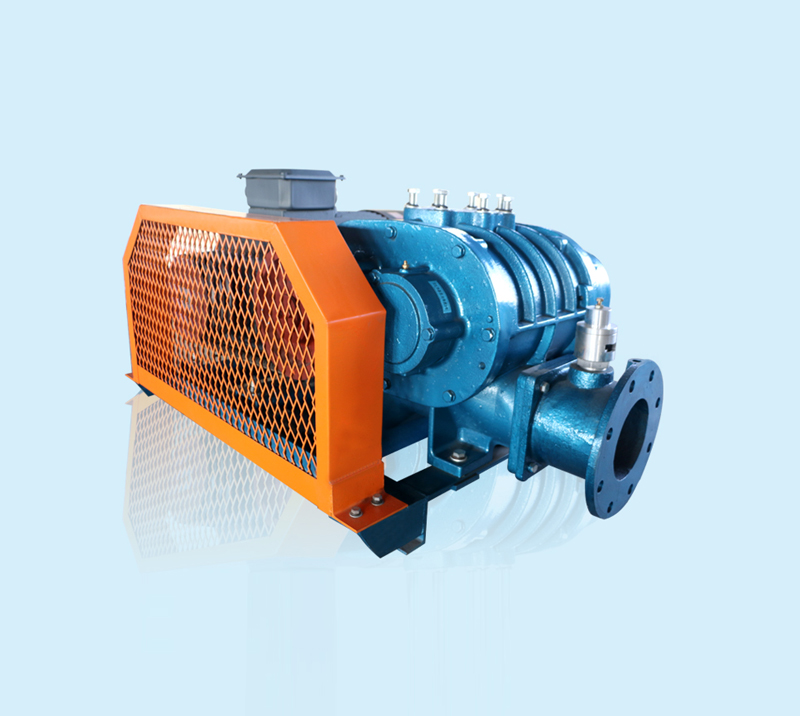

DRRF290 High Pressure Industrial Air Application Roots Blower

Inquire Now Next ProductDownload
share

Product Description

Product introduce

DRRF290 Roots Blowers are twin-lobe type roots blowers, adopt the advanced technology of Japan, its air capacity is 75.8m3/min- 144.5m3/min, the pressure is from 9.8Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.



Feature

1. Air capacity and pressure can be customized

2. Stable air capacity and less pressure variation

3. Clean air not with oil moist

4. Construction simple and easy maintenance

5. Bearing are all lubricated by oil moist

6. Long service life


Specification

Type of technologyPositive displacement blowers
DesignPositive pressure
Air capacity

75.8 to 144.5m3/min

Discharge Pressure9.8 to 98Kpa
MediumAir, Neutral gases
ConveyingOil-free
Weight4710-5640kg
Discharge Diameter300mm(or customized)


Application

IndustryApplication
Bulk material handlingPneumatic conveying
DairyAutomated milking
Vacuum excavationPotholing & slurry recovery
Chemical IndustryVacuum processing & conveying
Pulp & paperChip conveying & process vacuum
Power generationFly ash conveying & aeration
Milling & bakingBlending & conveying
Blower applicationMaterial vacuuming
Cement & limeFluidization & conveying
Waste waterAeration & backwashing
More...


Parts

Inlet filter silencer

Discharge silencer

Anchor bolts

Baseframe,

Safety valve,

Check valve,

Discharge pressure gauge,

Flexible connections

Lubricant.



Package

Fumigation free plywood case

Iron case


Certificate



DRRF290 High Pressure Industrial Air Application Roots Blower



Performance parameters

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

DRRF290 Roots blower
Rotate Speed(r/min)Pressure(kpa)Air Capacity(m3/min)ShaftPower(KW)Motor
ModelPower(KW)
6509.892.322Y225M-630
19.688.439Y280S-645
29.485.457Y315S-675
39.283.074Y315M-690
49.080.891Y315L1-6110
58.878.9108Y315L2-6132
68.677.2125Y355M1-6160
78.475.8142Y355M1-6160
7309.8105.025Y250M-830
19.6101.145Y315S-855
29.498.164Y315M-875
39.295.783Y315L1-890
49.093.5103Y355M1-8132
58.891.6122Y355M2-8132
68.689.9141Y355M1-8160
78.488.5160Y355L-6185
8009.8116.027Y225M-630
19.6112.148Y280M-655
29.4109.170Y315M-690
39.2106.791Y315L1-6110
49.0104.5112Y315L2-6132
58.8102.6134Y355M1-6160
68.6100.9155Y355M2-6185
78.499.5176Y355M3-6200
8809.8128.730Y250M-637
19.6124.853Y315S-675
29.4121.876Y315M-690
39.2119.4100Y315L1-6110
49.0117.2123Y355M1-6160
58.8115.3146Y355M2-6185
68.6113.6169Y355M2-6185
78.4112.2192Y355M3-6220
9809.8144.533Y250M-637
19.6140.659Y315S-675
29.4137.685Y315L1-6110
39.2135.2110Y315L2-6132
49.0133.0136Y355M1-6160
58.8131.1161Y355M2-6185
68.6129.4187Y355L1-6220
78.4128.0213Y355L2-6220
